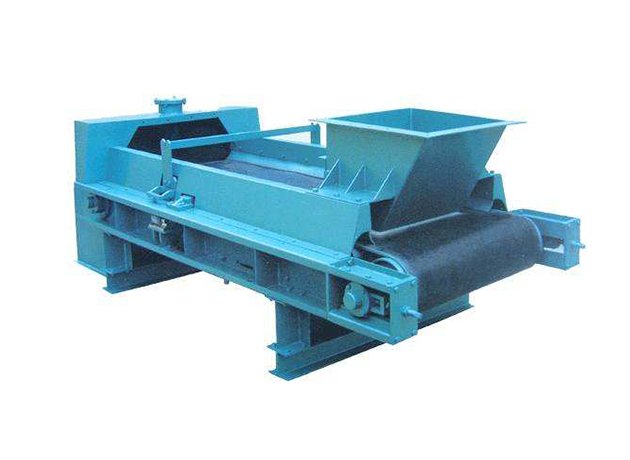

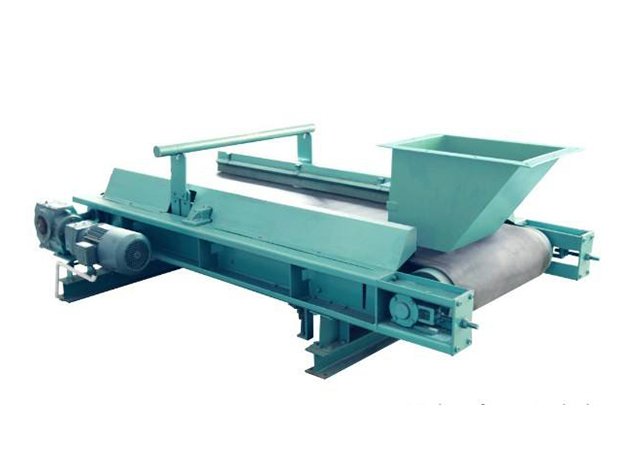

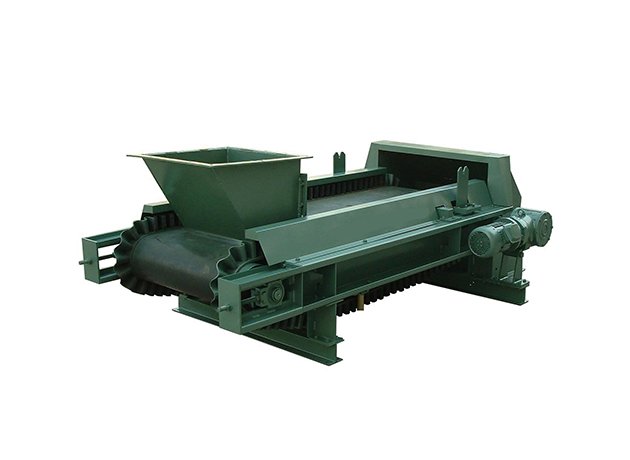

The TDG Speed governing constant weight feeder is a new type of conveying, feeding, weighing and controlling device, which can be digested, absorbed and improved on the basis of advanced technology at home and abroad.It is suitable for weighing and quantitative feeding in the process of dynamic conveying of the block, the material solid material or the powder material,and is widely used in the industries of cement, electric power, metallurgy, chemical industry, food, feed, and other industries, as the automatic dynamic continuous measurement and control device of ingredients.
The product is controlled by the computer system, the most advanced Chinese weighing control instrument on the spot, and can also be matched with the variable frequency speed controller single way to measure and quantify the material feeding.
model | geared motor model specification （SBD65、75、85） | Belt speed （m/s） | load cell （kg） | Inverter rated speed （Hz） | Station output （t/h） | Reference station output （t/h） |
| TDG650 | SBD65-1923-1.5k | 0.0082 | 100 | 50 | 0.1-10 | 0.2-0.8 |
| TDG850 | SBD65-619-1.5k | 0.0254 | 100 | 50 | 0.4-4.0 | 0.65-3.2 |
| TDG800 | SBD65-253-2.2k | 0.0621 | 100 | 50 | 2.0-20 | 4.0-16 |
| TDG800 | SBD65-150-1.5k | 0.1539 | 100 | 50 | 4.0-40 | 10-32 |
| TDG1000 | SBD75-150-3k | 0.1723 | 200 | 50 | 10-100 | 40-80 |
| TDG1200 | SBD75-150-3k | 0.2661 | 200 | 50 | 16-160 | 80-100 |
| TDG1400 | SBD75-102-4k | 0.3017 | 200 | 50 | 20-200 | 100-150 |
| TDG1600 | SBD85-102-5.5k | 0.3565 | 200 | 50 | 35-350 | 150-300 |
| TDG1800 | SBD85-90-5.5k | 0.4358 | 300 | 50 | 50-440 | 200-400 |
| TDG2000 | SBD85-90-7.5k | 0.5603 | 300 | 50 | 100-600 | 300-600 |
