Chute feeder is generally lifted on the ore storage bin discharge port. The bottom plate can be used for reciprocating motion to realize the ore feeding. The stroke is 20-60 times /min, travel is 20-200mm. The amount of ore feeding is decided by the size of the stroke, and the stroke adjustment method is as follows: adjusting the eccentricity of the eccentric wheel of the driving device.
According to the scale of mineral processing and the operation system, the corresponding model of the ore feeder is provided by the production plant, the motor can be changed into a speed regulating motor, need to special order.

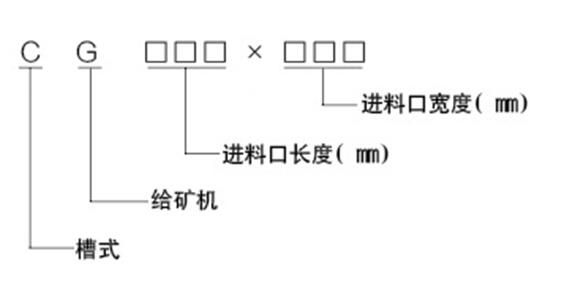

model | Inlet Size Length x width (W×H) (mm) | Maximum feeding side (mm) | Feed size (t/h) | model | power (kw) | weight (kg) |
| CG600×500 | 600×500 | 200 | 10-50 | Y112M-4 | 4 | 1045 |
| CG700×500 | 700×500 | 250 | 10-60 | Y112M-4 | 4 | 1100 |
| CG1240×980 | 1240×980 | 350 | 36-90 | Y160M-6 | 7.5 | 1710 |
