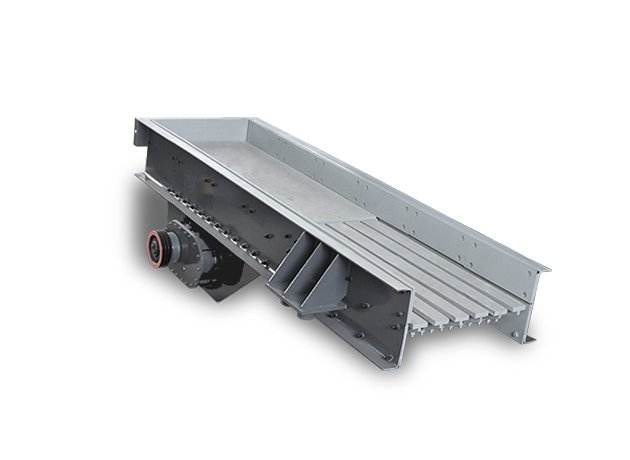

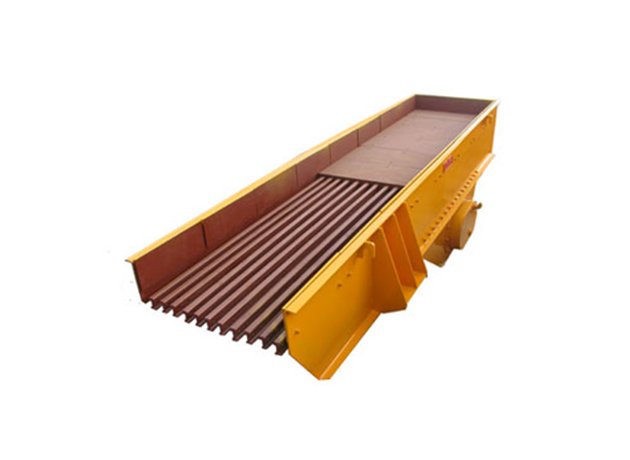

ZSW vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor.

The vibrator is made of two fixed eccentric shafts whose gears are jogged.

ZSW vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through the driving of motor, the two eccentric shafts start to rotate to produce linear huge power which forces the feeder to vibrate. Via the vibration, the materials will slip and sling on the funnel and subsequently move forward. When the materials pass the screening, smaller parts will fall down. As a result, the further crushing is skipped and screening effects are achieved.

Widely used in metallurgy, coal, mineral processing, building materials, chemical, abrasive and other industries in the crushing, screening equipment. This machine is not suitable for conveying wet materials

It has the advantages of simple structure, convenient installation, stable vibration, reliable operation, long service life, convenient maintenance and maintenance, easy realization of automatic control, etc.;

ZSW Vibrating Feeder adopts a double shaft vibrator, which is used to complete the screening process at the same time of the linear vibration feeding, so as to improve the utilization ratio of the equipment and reduce the cost;

Not suitable for conveying sticky material;

It can be used for continuous and uniform feeding of the coarse crushing machine, and meanwhile, the raw material is coarse screened;

Optional motor speed, adjust the frequency, thus changing the production, easy to control the feeding amount, without frequent start motor.
