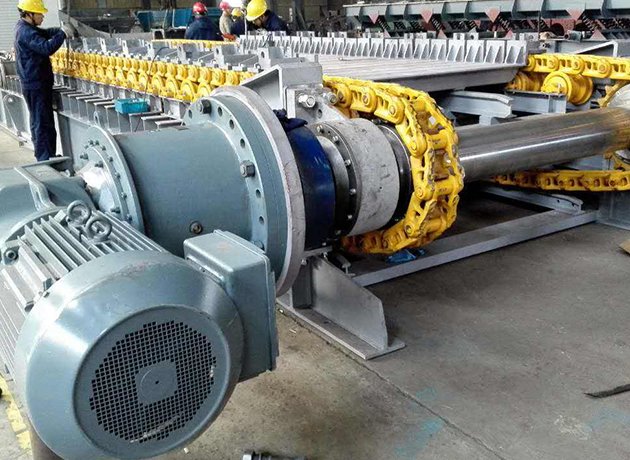

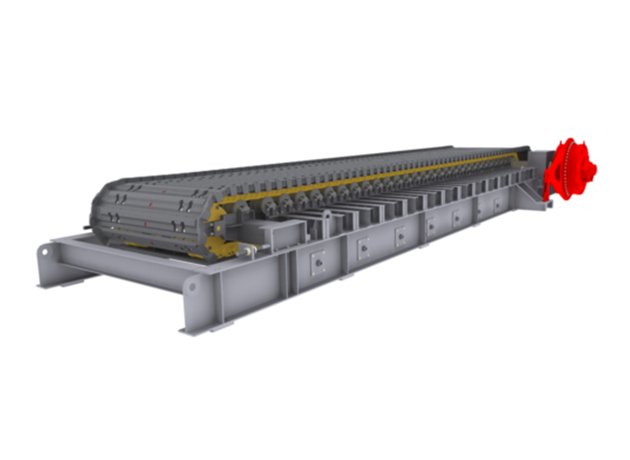

Feeding machine main work is to put the motor power through reducer, it makes the eccentric connecting rod to do reciprocating motion, and makes the pawl driven ratchet drive sprocket rotates, thereby intermittent chain plate can move, so as to achieve the purpose of conveying material
The machine is widely used in the crushing and grading workshop and cement, building materials and other industries , which can be used as a continuous and uniform feeding material to the primary crusher.
Feeding machine main work is to put the motor power through reducer, it makes the eccentric connecting rod to do reciprocating motion, and makes the pawl driven ratchet drive sprocket rotates, thereby intermittent chain plate can move, so as to achieve the purpose of conveying material
model | scraping belt | feed size （mm） | production capacity （m3/h） | Model | overall dimension (length*width*height) （mm） | weight （kg） | |||
width （mm） | Sprocket center distance （mm） | velocity （m/s） | model | power （kW） | |||||
| GBH80-2.2 | 800 | 2200 | 0.01-0.053 | ≤300 | 15～91 | Y132M-4 | 7.5 | 3840×2850×1185 | 3722 |
| GBH80-3 | 3000 | XWED106-385-4 | 4 | 4868×2705×1060 | 4014 | ||||
| GBH80-4 | 4000 | Y132M-4 | 7.5 | 5640×2986×1185 | 5087 | ||||
| GBH80-5.8 | 5800 | 0.18 | ≤300 | 15～91 | XWED7.5-8215A-231 | 7760×2823.5×1321 | 6526.7 | ||
| GBH100-1.6 | 1000 | 1600 | ≤0.15 | ≤350 | 22～131 | Y160M-6 | 3240×3026×1235 | 3561 | |
| GBH100-3 | 3000 | 4640×3114×1235 | 4548 | ||||||
| GBH100-4 | 4000 | 0.01-0.053 | 22～131 | XWED106-385-4 | 4 | 5648×290×1160 | 5086 | ||
| GBH120-1.8 | 1200 | 1800 | ≤0.15 | 300～400 | 35～217 | Y160M-6 | 7.5 | 3440×3314×1235 | 3965 |
| GBH120-2.2 | 2200 | 3840×3314×1285 | 4238 | ||||||
| GBH120-2.6 | 2600 | 4240×3314×1285 | 4572 | ||||||
| GBH120-3 | 3000 | XWED7.5-8215A-273 | 4960×3150×1434 | 5075 | |||||
| (不含减速机) | |||||||||
| Excluding reducer | |||||||||
| GBH120-4 | 4000 | Y160M-6 | 5640×3402.5×1285 | 6100 | |||||
| GBH120-4.5 | 4500 | XWED7.5-8215A-273 | 6460×3150×1434 | 6350.6 | |||||
| (不含减速机) | |||||||||
| Excluding reducer | |||||||||
| GBH120-6 | 6000 | 300～400 | 35～217 | XWED11-8225B-273 | 11 | 7960×3242×1434 | 8210 | ||
