This vibrating feeder is suitable for feeding the bulk, granular and powdery material from the raw ore bin or the intermediate silo to the receiving device, and widely used in mining metallurgy, coal, glass, machinery, light industry, chemical industry, electricity, food and other industries. The product is simple in structure, economical and practical.
1, Order should be marked models, specifications, and specify the name of the material and the proportion.
2, GZG series electric vibrating feeder for hanging installation, according to user requirements, can also be made into a seat or half a half hanging installation.
3, According to the needs of users, our factory can manufacture non-standard vibration feeder for users.

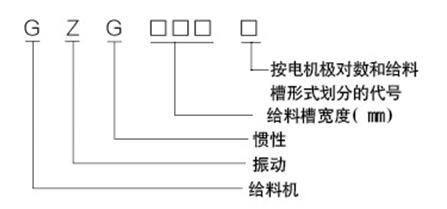

According to the code of the motor pole and feed slot
| Code | 3 | 4 | 5 | 6 |
| Motor poles | 4 | 6 | ||
| Feed trough form | light duty | heavy duty | Light duty | Heavy duty |
| model | dip angle | Feed size (mm) | Production capacity (t/h) | vibration frequency (Hz) | amplitude (mm) | motor | Total weight (kg) | Application scope t/d | |
model | power (kw) | ||||||||
| GZG303 | 0-10 | ≤100 | 25-32 | 23.83 | 2 | YZO-3-4 | 2×0.18 | 187 | 200 |
| GZG403 | 0-10 | ≤100 | 30-40 | 23.83 | 2 | YZO-5-4 | 2×0.25 | 245 | 300-300 |
| GZG503 | 0-10 | ≤150 | 60-85 | 23.83 | 2 | YZO-5-4 | 2×0.25 | 273 | 200-400 |
| GZG633 | 0-10 | ≤200 | 110-150 | 23.83 | 2 | YZO-10-4 | 2×0.55 | 473 | 400-600 |
| GZG703 | 0-10 | ≤200 | 120-170 | 23.83 | 2 | YZO-10-4 | 2×0.55 | 514 | 600-1000 |
| GZG803 | 0-10 | ≤250 | 160-230 | 23.83 | 2 | YZO-16-4 | 2×0.75 | 470 | 1000-2000 |
| GZG903 | 0-10 | ≤250 | 180-250 | 23.83 | 2 | YZO-20-4 | 2×1.1 | 900 | 2000 |
| GZG1003 | 0-10 | ≤300 | 270-380 | 23.83 | 2 | YZO-30-4 | 2×1.5 | 950 | 2500 |
| GZG1004 | 0-10 | ≤300 | 300-400 | 23.83 | 2 | YZO-30-4 | 2×1.5 | 1165 | 3000 |
| GZG0705 | 0-10 | ≤200 | 130-180 | 16.16 | 2.5 | YZO-10-6 | 2×0.75 | 557 | 800-1000 |
| GZG0805 | 0-10 | ≤250 | 170-250 | 16.16 | 2.5 | YZO-10-6 | 2×0.75 | 718 | 1000-2000 |
| GZG0905 | 0-10 | ≤250 | 200-270 | 16.16 | 2.5 | YZO-10-6 | 2×0.75 | 881 | 2000 |
| GZG1005 | 0-10 | ≤300 | 290-410 | 16.16 | 2.5 | YZO-20-6 | 2×1.5 | 936 | 2000-3000 |
