DK series disk feeder is hanging seal type, suitable for feeding powder material with particle size below 20mm. The structure of the ore feeding machine is complex and durable, and hung on the bottom of the powder ore bin. It can regulate ore feeding by adjusting the scraper position.
According to the scale of mineral processing and the operation system, the corresponding model of the ore feeder is provided by the production plant, the motor can be changed into a speed regulating motor, need to special order.

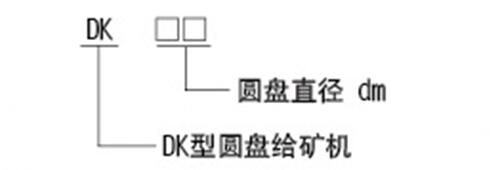

| model | Disc diameter (mm) | Production capacity (t/h) | material diameter (mm) | Install form | motor | weight (kg) | |
model | power (kw) | ||||||
| DK6 | 600 | 0.6-3.9 | 25 | hanging | Y90L-6 | 1.1 | 403 |
| DK8 | 800 | 1.4-7.6 | 30 | hanging | Y90L-6 | 1.1 | 555 |
| DK10 | 1000 | 2.5-16.7 | 40 | hanging | Y100L-6 | 1.5 | 827 |
| DK13 | 1300 | 4.2-27.9 | 50 | hanging | Y132S-6 | 3 | 1150 |
| DK16 | 1600 | 7-48.6 | 60 | hanging | Y132M1-6 | 4 | 2125 |
| DK18 | 1800 | 9.2-60 | 70 | hanging | Y132M2-6 | 5.5 | 2900 |
| DK20 | 2000 | 13.6-80 | 80 | hanging | Y132M2-6 | 5.5 | 3140 |
