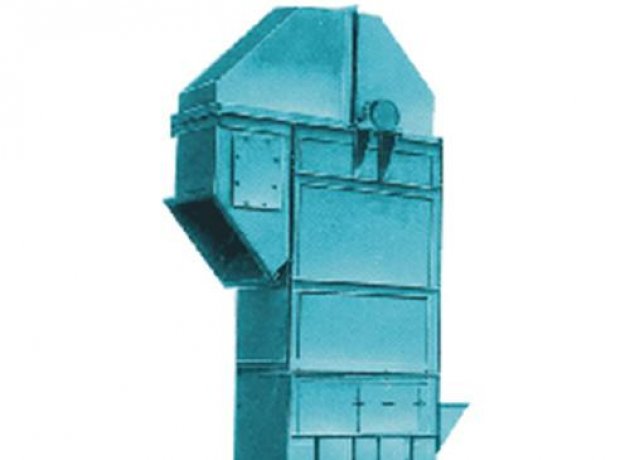

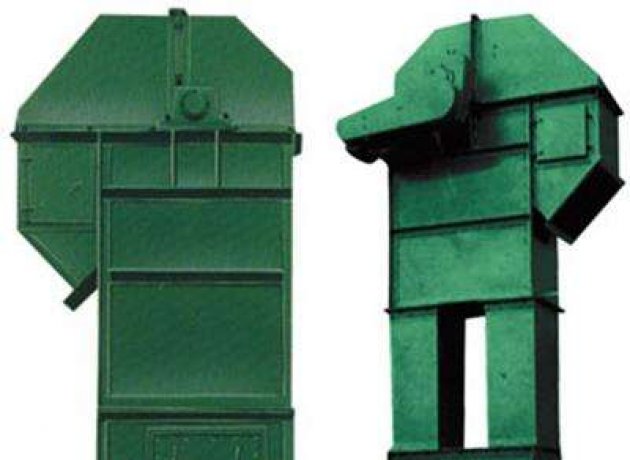

TH series bucket hoist

The hopper scoops the material from the underlying storage,  by the conveyor belt or chain lift to the top, get over the top then fall, bucket hoist  deliver the material into the receiving tank.  Belt drive bucket hoist uses the rubber   belt,mounted below or above the driving roller and direction roller. Chain drive bucket hoist generally equipped with two parallel transmission chain, and assembled a pair of transmission sprockets and a pair of direction Sprockets. Bucket elevator equipped with a case to prevent the dust.

Th series bucket elevator is suitable for conveying powdery, granular and small pieces of non-grinding and small grinding materials.

1. TH type is a circular chain bucket elevator which using a mixed or gravity discharge, dig-type loading;

2. The traction parts are made of high-quality alloy steel, the central chassis is divided into single or double-channel,which automatic and constant tension  the heavy hummer box. Chain wheel can be replaced easily.

3. long service life, wheel rim replacement work is simple;

4. Lower part adopts gravity tension device, which keep the constant tension, avoid skidding or off chain. When hopper encounters some stuck phenomenon caused by accidental factors, the device can effectively protect the lower shaft and other parts.
