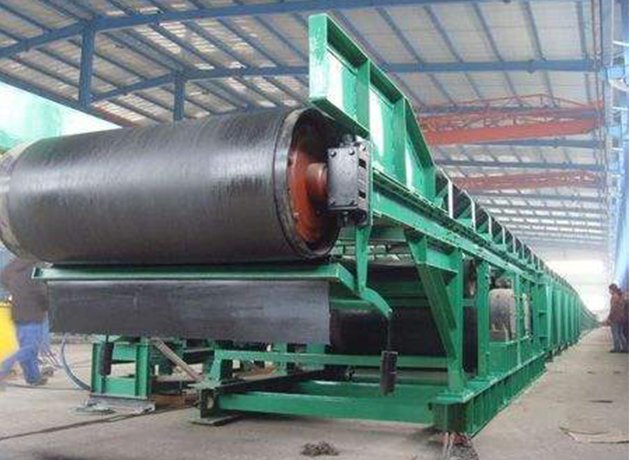

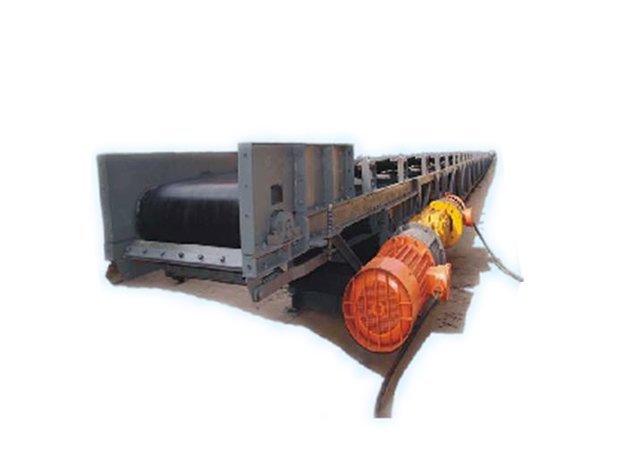

DT II Belt conveyor

DTII belt conveyor is a general-purpose series of products, can be widely used in metallurgy, mining, coal, ports, power plants, building materials, chemicals, light industry, petroleum and other industries. From single or multi-unit transport system to transport the material, can be transported loose bulk density of 500-2500kg / m3 of various bulk materials and pieces of goods.

DTII belt conveyor suitable for the working environment temperature is generally -25 ℃ to +40 ℃. Requirements of material temperature does not exceed 70 ℃; heat-resistant rubber belt can transport high temperature material below 120 C. Belt conveyor should not be used when material temperature is higher. When the delivery of acidic alkaline oil and organic solvents or other ingredients of the material, have to use the oil resistant, acid resistant and alkali resistant rubber band plastic tape.

DTII belt conveyor are designed according to parts series. Designers can according to the delivery process requirements. According to different terrain, working conditions to select design and combine into the whole conveyor. This series of components can meet the requirements of horizontal and inclined conveying, can also be used with convex arc, concave arc segment and straight line combination of transport form. Conveyor allows to transport the material block depends on the bandwidth, belt speed, slot angle and dip. It also depends on the frequency of bulk material.
