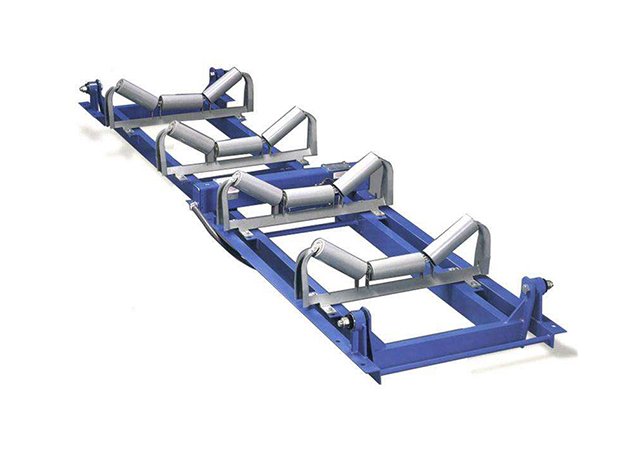

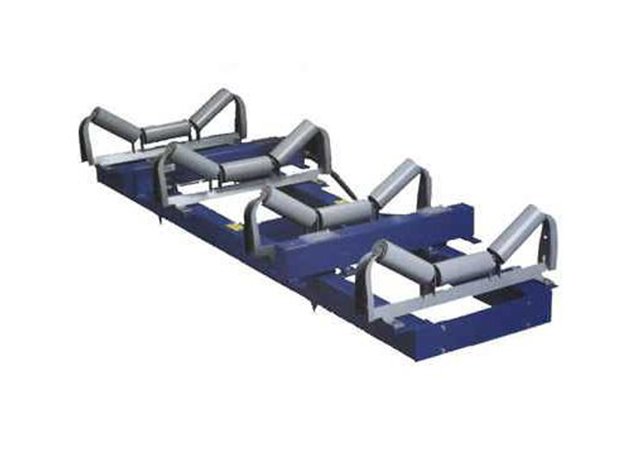

SDE Electronic belt scale

This machine is mainly composed of a fixed frame, weighing frame, brackets, tension sensor and instrument. When conveying material conveyor, material weight by weighing on the plane to the sensor, after instrument of automatic processing, can display the weight signal into traffic signal and the cumulative total.


Apply the width of the belt: 500 mm ~ 1000mm

weighing range: 10t / h ~ 1.000 t / h

The belt width: 500 mm, 650 mm, 800 mm, 1000 mm

The belt speed: 0,02 m / s ~ 2,5 m / s

Measuring accuracy: ≤ ± 1% (cantidad acumulada)

Installation Angle: ≤ 18 °

The instantaneous flow rate: t / h (4-20)
