1. Advanced structure, sturdy and durable, smooth operation, low noise, high efficiency, Large processing capacity and convenient maintenance, etc..
2. Motor power is small, generally only the other class screen 1/4-1/5.
3. High screening efficiency.
4. The screen surface angle is adjustable.
5. It is small load transmitted to the base, don't need to do special treatment to the base.
6. Mainly used for screening carbon.

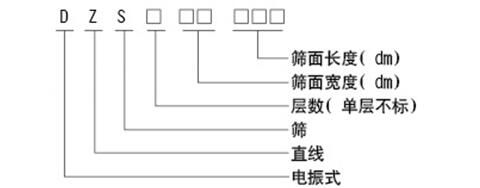

Model | Screening area (m2) | Vibration amplitude (mm) | Electric motor | rotate speed (r / min) | |
Model | Power (kW) | ||||
| DZS0410 | 0.4x1.0 | 3-5 | Sieve Vibratora21-6 | 0.4 | 930 |
| DZS0412 | 0.4x1.2 | 3-5 | Sieve Vibratora21-6 | 0.4 | 930 |
| DZS0415 | 0.4x1.5 | 3-5 | Sieve Vibratora21-6 | 0.4 | 930 |
| DZS0612 | 0.6x1.2 | 3-5 | Sieve Vibratora21-6 | 0.4 | 930 |
| DZS0718 | 0.7x1.8 | 3-5 | YZO-20-8 | 1 | 730 |
| DZS0816 | 0.8x1.6 | 3-5 | YZO-10-6 | 1 | 950 |
| DZS20918 | 0.9x1.8 | 3-5 | YZO-20-6 | 2 | 950 |
| DZS21018 | 1.0x1.8 | 3-5 | YZO-20-6 | 2 | 950 |
| DZS21020 | 1.0x2.0 | 3-5 | YZO-20-6 | 2 | 950 |
| DZS21225 | 1.25x2.5 | 3-5 | YZO-20-6 | 2 | 950 |
| DZS31530 | 1.5x3.0 | 3-5 | Sieve Vibratora41-6 | 3 | 940 |
| DZS31536 | 1.5x3.6 | 3-5 | Sieve Vibratora41-6 | 3 | 940 |
