The vibrating screen Series whose movement path is round, suitable for the dry classification of medium granularity materials, the utility model has the advantages of simple installation, convenient maintenance, reliable operation, high screening efficiency, good sieving performance etc...
1. When ordering, in addition to indicating the model and quantity, also noting screen holes size, screen mesh form.
2. The motor can be installed on the left or the right side, please indicate if there are installation requirements, otherwise, according to the supplier drawings supply.
3. If the user has special requirements, our factory can do non-standard product design and manufacturing.

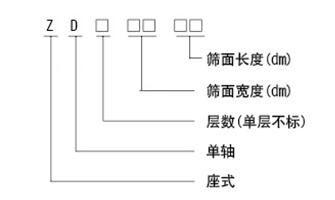

Model | Screening area(m2) | Screen mesh layers | Maximum feeding size (mm) | Processing capacity (t / h) | Screen hole size | Double amplitude | Vibration times | Motor | Weight (kg) | |
| (times / min) | Model | Power (kW) | ||||||||
| ZD918 | 1.6 | 60 | 10-30 | 1-25 | 6 | 1000 | Y100L1-4 | 2.2 | 553 | |
| ZD2918 | 1.6 | 2 | 50 | 10-30 | 1-25 | 6 | 1000 | Y100L1-4 | 2.2 | 702 |
| ZD1224 | 2.9 | 100 | 70-210 | 6-40 | 0-7 | 1000 | Y112M-4 | 4 | 1130 | |
| ZD21224 | 2.9 | 2 | 100 | 70-210 | 6-40 | 0-7 | 850 | Y112M-4 | 4 | 1545 |
| ZD1530 | 4.5 | 100 | 90-270 | 6-50 | 6-7 | 850 | Y132S-4 | 5.5 | 1650 | |
| ZD21530 | 4.5 | 2 | 100 | 90-270 | 6-50 | 6-7 | 850 | Y132S-4 | 5.5 | 2260 |
| ZD1540 | 6 | 100 | 90-270 | 6-50 | 7 | 850 | Y132M-4 | 7.5 | 2070 | |
| ZD21540 | 6 | 2 | 100 | 90-270 | 6-50 | 7 | 850 | Y132M-4 | 7.5 | 2850 |
| ZD1836 | 6.5 | 150 | 100-300 | 6-50 | 7 | 850 | Y160M-4 | 11 | 1960 | |
| ZD21836 | 6.5 | 2 | 150 | 100-300 | 6-50 | 7 | 850 | Y160M-4 | 11 | 2840 |
| ZD2160 | 12 | 150 | 240-540 | 10-50 | 8 | 900 | Y180L-4 | 22 | 6529 | |
