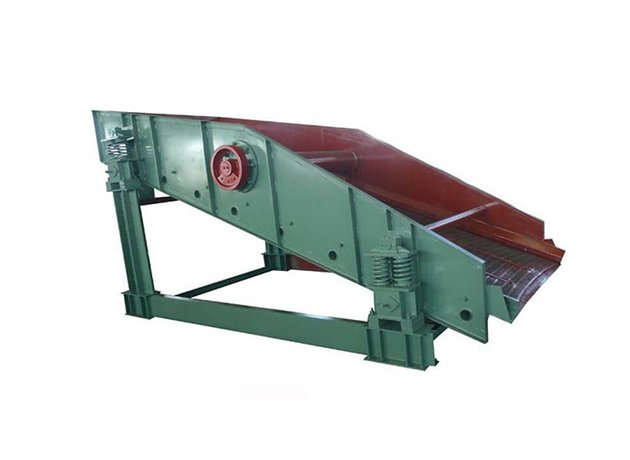

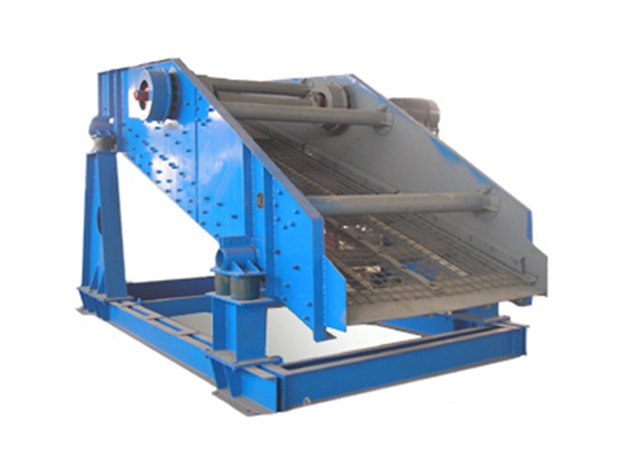

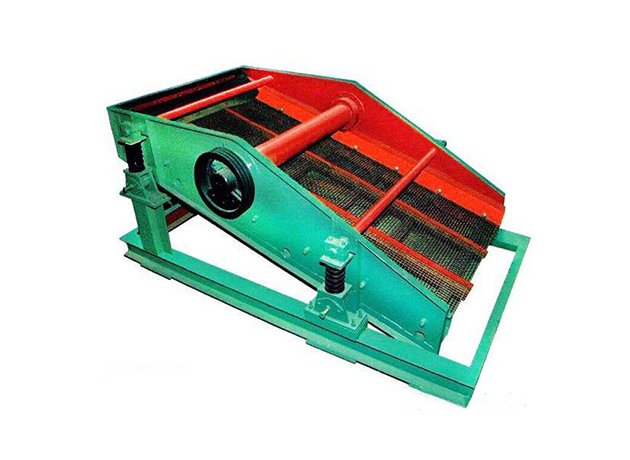

SZZ self center vibrating screen

SZZ self center vibrating screen whose movement path is round, classifying small and medium granularity materials, being a traditional and most used screening equipment in China.

1. When ordering, in addition to indicating the model and quantity, also noting screen holes size, screen mesh form. (Woven screen mesh or Punched sieve plate)

2. The motor can be installed on the left or the right side, please indicate if there are installation requirements, otherwise, according to the supplier drawings supply.

3. If the user has special requirements, our factory can do non-standard product design and manufacturing.

4. This Series of vibrating screens are pendant type except the Model SZZ1836. Can be processed according to user requirements into seat type, need to specify.

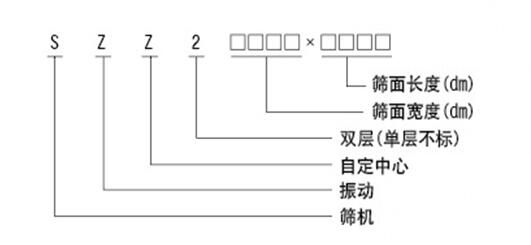

ModelSpecifications(mm)Maximum feeding size(mm)Processing capacity(t/h)Model of motorPower of motor(kw)Weight (kg)
SZZ0918900 x 18004020-25Y100Lr42.2420
SZZ20918900 x 18004040-50Y100Lr42.2570
SZZ12251250 x 250010070-100Y132S-45.51020
SZZ212251250 x 250010070-100Y132S-45.51320
SZZ15301500 x 300010090-200Y132M-47.51650
SZZ215301500 x 300010090-200Y132M-47.52870
SZZ215401500 x 400010090-200Y160L-4154240
SZZ18361800 x 3600150100-300Y180M-418.54500
SZZ218361800 x 3600150100-300Y180M-418.55616
