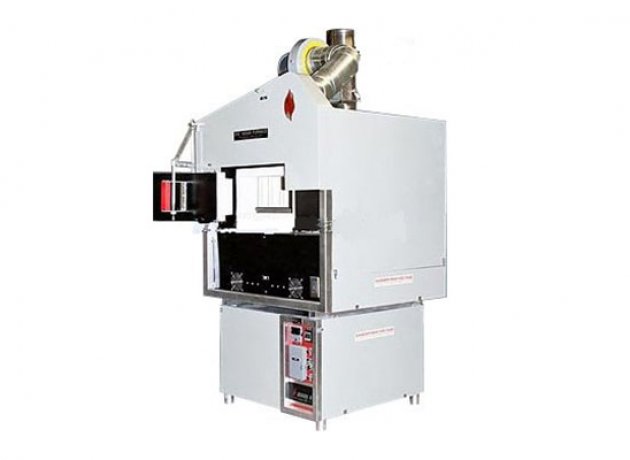

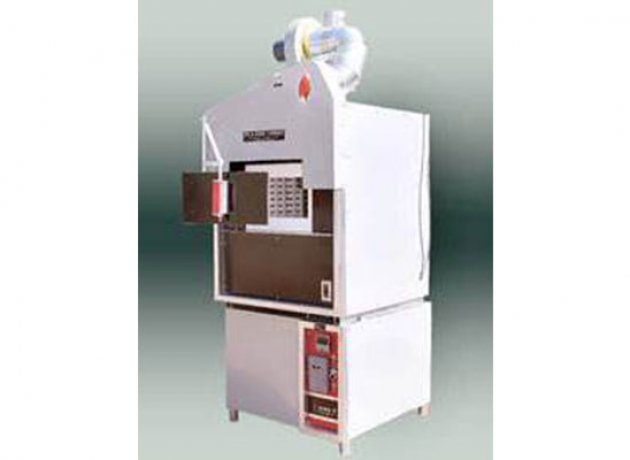

DFC pyrometallurgy crucible

Digital solid-state temperature controller, using K thermocouple, 485 network communication protocol or LAN connection allows the computer control unit.

Double set point, low temperature idle function, extend the work of refractory and heating elements.

High alumina vibrocast refractory lining ,make the heat distribution.

The long life of the cross section of nickel-chromium alloy element, easily from the furnace before replacement.

Energy-saving exhaust fan and hood,butterfly type damper system variable airflow control minimizationand prevent oxide accumulation.

Refractory lining replacement completed entirely through the rear. Open the appropriate ventilation hood to evacuate. Swinging door fully open the heating chamber.

Electronics, ceramics, metallurgy, glass, experiment and production in the field of new materials development,mainly used in fire assay of hot melt in the sample.

Model

Hearth internal size

D×W×H(mm)

Number and size of crucible

The rated temperature(℃)

Heating fuel

802368×355×20348-50(38mm,40mm)1149

Three-phase power

12kw
810B425×641×21928(30g,40g,50g)1149

Three-phase power

25kw
812425×641×21928(30g,40g,50g)1149

Three-phase power

25kw
815425×641×21928(30g,40g,50g)1149

Three-phase power

40kw
815L425×1000×21944(30g,40g,50g)1149

Three-phase power

55kw
