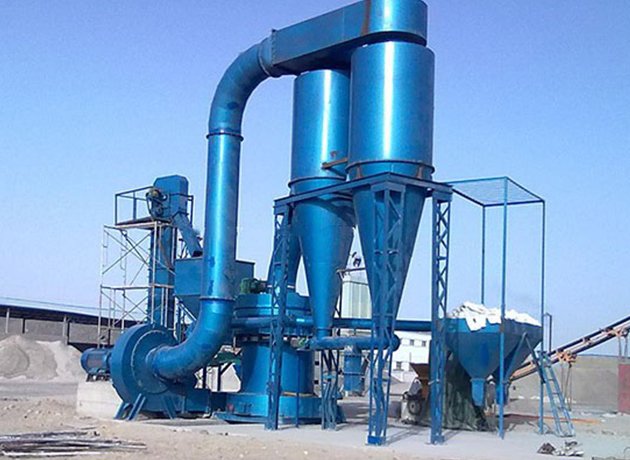

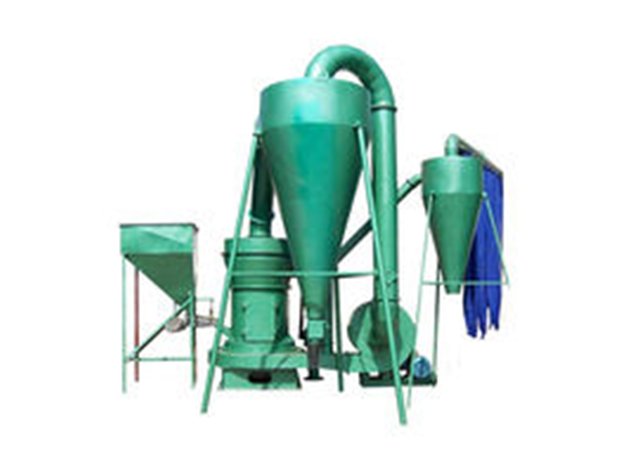

Technical parameters of LQ Raymond pendulum mill(Raymond Mill)

Model

LQ2300 (

pendulum

LQ2100 (

pendulum

LQ1900 (

pendulum

LQ1700 (

pendulum

LQ1520 (

pendulum

LQ1420 (

pendulum

LQ1300 (

pendulum

LQ1000 (

pendulum

Feeding size(mm)

<40<40<30<30<30<30<25<25

Size of finished product (mm)

0.125 - 0.0440.125 - 0.0440.125 - 0.0440.125 - 0.0440.125 - 0.0440.125 - 0.0440.125 - 0.0440.125 - 0.044

Output of different materials fineness(t/h)

30-10016-5010-4010-158-308-304-51.5-4.8

Central Shaft Speed

647278838383105130
(「/min)

Diameter of the grinding Ring (mm)

23002100190017001520142013001000

Diameter of Roller (mm)

630630510510450420420350

Height of Roller (mm)

280280280280280240240210

The Host Motor

High Pressure 400 kw

Y355L-4-315Y355Mh4-220Y31511-4-160Y280S-4-132Y280S-4-90Y280S-4-75Y225M-4-45

The Fan Motor

High Pressure 280kw

Y355-4-220Y35511-4-160Y315M-4-132Y280S-4-90Y280S-4-110Y280S-4-75Y225M-4-45

Electric motor of classifier

Y250M-8-30Y250M-8-30Y225M-8-22Y225M-8-22Y132S-4-11Y132S-4-18.5Y132-4-7.5Y132-4-5.5
