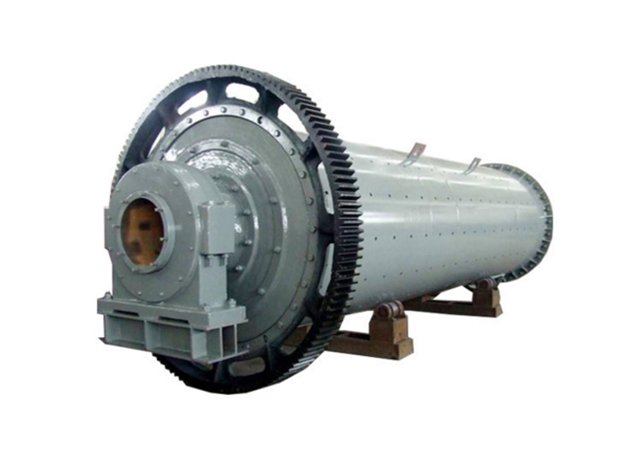

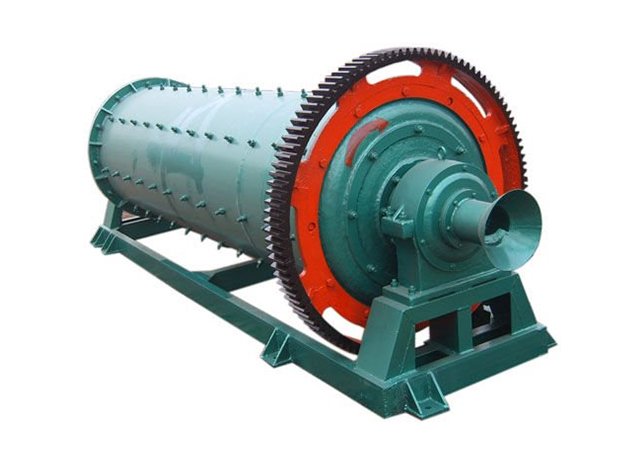

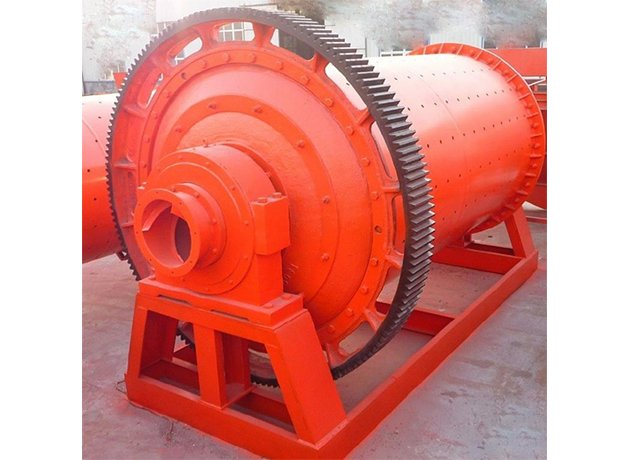

GM rolling bearing ball mill

型号参数WFXZ-1.8WFXZ-2.0WFXZ-2.5WFXZ-2.8WFXZ-3.0
柱体高度(_)18002000250028003000
柱体高度(_)65007000700070007500
入料浓度(g/L)50-15050-15050-15050-15050-150
入料粒度(_)-0.50.16-0.20-0.5-0.5-0.5
处理能力矿浆(m3/h)100-200100 - 200125 - 250150 -300200 - 300

干量(t/h)5月12日5月12日8月16日10月20日12月20日
微泡发生器工作压力0.16-0.200.16-0.20.16-0.200.16-0.200.16-0.20
微泡发生器数量1010141820

型号IS(R)150 - 125-315IS(R)150 - 125-315IS(R)150 - 125-400IS(R)200 - 150-315LQE2000 - 150
循环泵配套电机Y225M-4Y225M-4Y225M-4Y225M-4Y280S-4

功率(kW)3030455575
油耗干煤泥(kg/t)1.0-1.51.0-1.51.0-1.51.0-1.51.0-1.5



This series of ball mill is a new type ball mill which is based on the old ball mill,It has the following characteristics:

1. Takes advantage of the double-row large diameter self-aligning bearing to replace the original tile alloy sliding bearing, reduce friction and energy consumption, easy to start mill.

2. Retain the old ball mill end cover structure, large diameter inlet and outlet port, with large handling capacity.

3. It takes advantage of the integral steel frame base, with high precision mounting, easy installation and short period.

4.The utility model cancels the combined feeder, adopts the drum feeder, has no inertia impact, the equipment runs smoothly, and reduces the maintenance time of the grinding machine, improves the efficiency.

When selecting, the user should indicate the ball mill rotation direction, the discharge way, We can change the bearing model as User requirements.

modelSpecificationsSpeed of Cylinder(r/min)Weight of Ball (t)Feeding granularity (mm)Productivity (T / h)

Matching motor

Dimensions (MM) (l X W X h)weight (kg)Production capacity (t/d)

Model

Power (kW)

GM0912中900 x 120041.61.1250.3-0.9Y180L-8113843 x 1850 x 140042105-10
GM0921中900 x 210041.61.8250.6-1.5Y180L-6154743 x 1850 x 1400666010-15
GM0933中900 x 330041.62.8250.9-2.3Y225M-6305943 x 1850 x 1400777015-20
GM1224中1200 x 240035.14251.6-4.1Y280S-8375540 x 2300 x 18501002020-25
GM1228中1200 x 280035.14.6251.9-4.8Y280M-8455940 x 2300 x 18501093520-50
GM1232中 1200 x 320035.15.3252.2〜5.5Y280M-8456340 x 2300 x 18501123035-55
GM1244中1200 x 440035.17.3253.0-7.5Y135S-8557540 x 2300 x 18501321060-80
GM1324中1300 x 240030.24.5251.5-3.5Y280S-8375035 x 2370 x 18801021030-60
GM1328中1300 x 280030.25.2252.0-4.5YR280S-8555435 x 2370 x 18801129050-80
GM1334中 1300 x 340030.26.5252.2-5.0Y280M-8756035 x 2370 x 18801311760-90
GM1524中 1500 x 240030.77252.8〜6.5YR280S-8556830 x 2930 x 20601543070-100
GM1530中 1500 x 300030.79253.5-8.0JR117-8807430 x 2930 x 206016843100-150
GM1533中 1500 x 330030.710254.0-9.0JR125-8957730 x 2930 x 206017849110-170
GM1536中 1500 x 360030.711254.5-10.0JR125-8958030 x 2930 x 206018649120-200
GM1542中1500 x 420030.712.5255.0-11.0JR126-81108630 x 2930 x 206019330150-200
GM1545中1500 x 450030.713.5255.5-13.5JR126-81108930 x 2930 x 206020000180-250
GM1557中 1500 x 570030.717257.0-15.5JR127-813010130 x 2930 x 206023597230-300
GM1563中1500 x 630030.719258.0-17.0JR128-815510730 x 2930 x 206024390250-350
GM1830中1830 x 300025.0413253.0-17.0JR127-81309525 x 3960 x 225029490180-200
GM1834中1830 x 340025.0414253.3-20.0JR128-81559925 x 3960 x 225030390180-250
GM1836中1830 x 360025.0415254.0-21.5JR128-815510125 x 3960 x 225031600180-300
GM1840中1830 x 400025.0417254.5-24.0JR128-815510525 x 3960 x 225032700200-350
GM1842中1830 x 420025.0418255.0-25.0JR128-815510725 x 3960 x 225033490250-400
GM1844中1830 x 440025.0419255.2-26.0JR136-818010925 x 3960 x 225034210280-400
GM1852中1830 x 520025.0421256.5-32.5JR136-818011725 x 3960 x 225037715300-450
GM1864中1830 x 640025.0427258.0-40.0JR137-821012925 x 3960 x 225042440350-500
GM2122中 2100 x 220023.815253.0-22.0JR127-81307775 x 4060 x 340038793200-300
GM2130中 2100 x 300023.820254.0-30.0JR136-81808475 x 4060 x 340041965300-400
GM2136中2100 x 360023.821255.0-37.0JR137-82109225 x 4060 x 340044551350-450
GM2140中2100 x 400023.822255.2-39.0JR138-82459475 x 4060 x 340046697400-600
