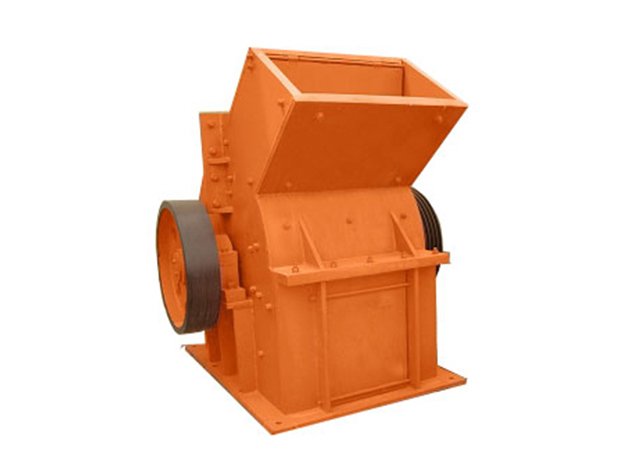

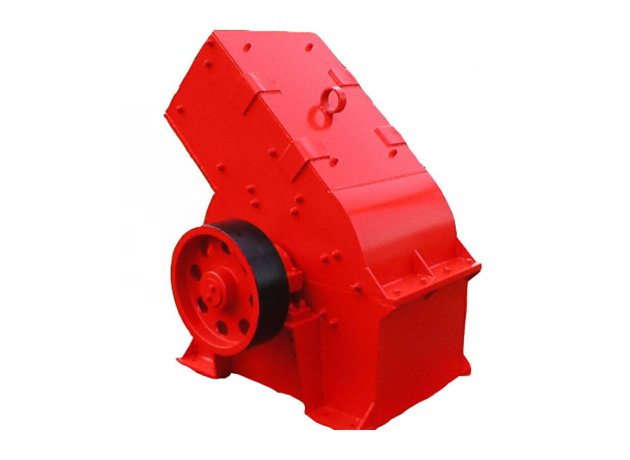

It is mainly composed of machine frame, rotor, a screen bar and hammer head. The motor drives the rotor through the transmission belt, and the material is broken by the impact between the hammer and the material produced when the rotor rotates.

It suited for crushing coal, gypsum, alum, limestone etc, the compressive strength of the material does not exceed 1000kg/cm2, humidity is not more than 15%.

Model

Rotation diameter (mm)

Outlet size(mm)

Maximum feed size(mm)

Production capacity(t/h)

Power (kW)

PC-中600 x 400中60010-3010012-1518.5
PC-中600 x 600中60010-3010012-1830
PC-中800 x 700中80010-4520013-3537
PC-中800 x 800中80010-4520013-4037
PC-中 1000 x 1000中10008-6030030-8055
PC-中 1000 x 1300中10008-6020035-100110
PC-中 1000 x 1500中10008-6030040-100132
PC-中 1200 x 1600中120010-70500100 - 250160
