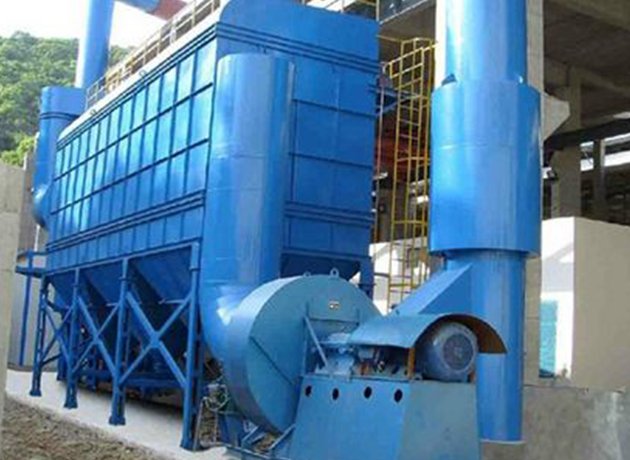

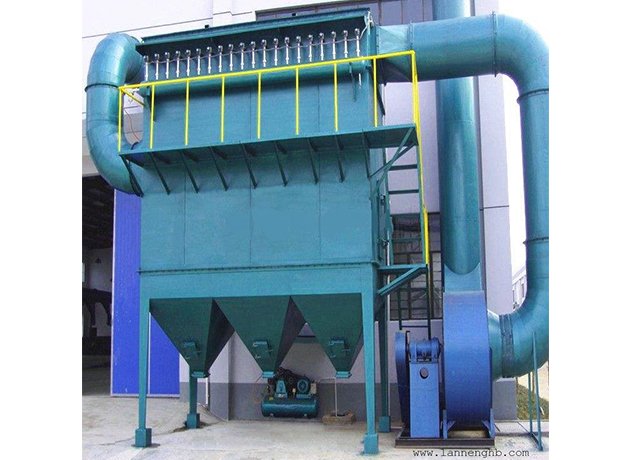

Dmc high efficiency pulse bag filter is our factories' years of exploration, drawing on domestic and foreign advanced technology and experience, combined with China's actual to designed and manufactured a energy-saving, high efficiency and high filter machine. The multi-functional bag filter mainly formed by box,filter bag, blowing system, discharging system, electric control system etc. Which has the characteristics of compact structure, less space required, high efficiency, reliable operation and convenient maintenance. The system running with PLC program to control the products. Apply to machining, casting, cement, chemical, electric power, food processing, asphalt mix station and superfine powder processing industry and recycling of raw materials.
Model | Filtration area（m2） | air volume of processing （m3/h） | Inlet concentration | Filtration velocity（m/min） | Running resistance （Pa） | Outlet concentration （mg/m3） | Compressed gas consumption（m3/min） | Bag specifications | Bag | Weight（t） |
| DMC-20 | 20 | 1200-2400 | ＜1000 | 1-2 | 800-1500 | ＜100 | 0.1 | φ128×2000 | 24 | 0.7 |
| DMC-24 | 24 | 1440-2880 | 0.1 | 32 | 0.9 | |||||
| DMC-28 | 28 | 1700-3500 | 0.1 | 36 | 1.3 | |||||
| DMC-32 | 32 | 2880-4800 | 15-25 | 0.13 | 42 | 1.6 | ||||
| DMC-38 | 38 | 3400-5700 | 0.15 | 48 | 1.8 | |||||
| DMC-48 | 48 | 4320-7200 | 0.2 | 64 | 2 | |||||
| DMC-60 | 60 | 5400-9000 | 0.24 | 80 | 2.5 | |||||
| DMC-72 | 72 | 6480-10800 | 0.3 | 96 | 3 | |||||
| DMC-90 | 90 | 8100-13500 | 0.36 | φ126×2500 | 96 | 4 | ||||
| DMC-120 | 120 | 10800-18000 | 0.46 | 128 | 4.7 | |||||
| DMC-150 | 150 | 13000-22500 | 0.48 | 160 | 5.4 | |||||
| DMC-180 | 180 | 16200-27000 | 0.55 | 192 | 6.5 | |||||
| DMC-210 | 210 | 18900-31500 | 0.65 | 224 | 7.7 | |||||
| DMC-250 | 250 | 22500-37500 | 0.75 | 250 | 8.6 | |||||
| DMC-270 | 270 | 24300-40500 | 0.8 | 280 | 9 | |||||
| DMC-300 | 300 | 27000-45000 | 0.9 | 300 | 9.8 | |||||
| DMC-350 | 350 | 31500-52500 | 1.22 | 360 | 11.2 | |||||
| DMC-420 | 420 | 37800-63000 | 1.25 | 420 | 13.3 | |||||
| DMC-450 | 450 | 40500-67500 | 1.35 | φ126×4000 | 288 | 14.3 | ||||
| DMC-500 | 500 | 45000-75000 | 1.5 | φ126×4500 | 288 | 15.8 | ||||
| DMC-600 | 600 | 54000-90000 | 1.8 | 336 | 19 | |||||
| DMC-740 | 740 | 66600-111000 | 2.2 | 420 | 21.8 | |||||
| DMC-870 | 740 | 78300-130500 | 2.6 | φ126×4620 | 480 | 26.1 | ||||
| DMC-1000 | 870 | 90000-150000 | 3 | φ126×4780 | 540 | 30.7 | ||||
| DMC-1100 | 1000 | 90000-165000 | 3 | 600 | 34.5 | |||||
| DMC-1300 | 1300 | 117000-195000 | 3 | 720 | 39 |
