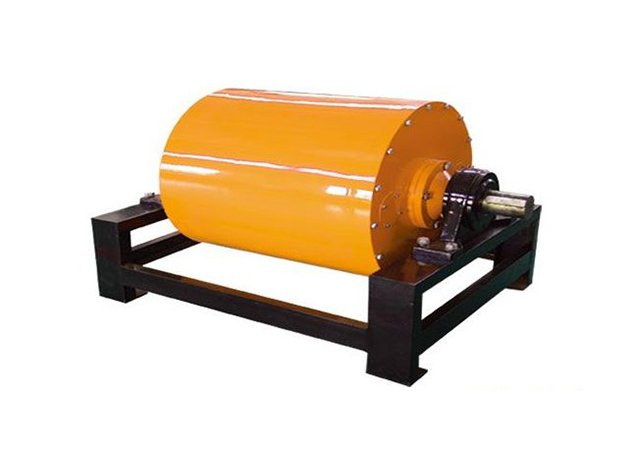

RCT series permanent magnetic drum

Home Products Gravity and Magnetic Separation Equipment Magnetic Separation Equipment

Online consultation

RCT series permanent magnetic cylinder also known as magnetic pulley, it has the advantage of high magnetic field strength, large depth, simple structure, no power consumption, the long usage without demagnetization.It work with DT-75 type, ad-80 settled belt conveyor to instead of action wheel or driven wheel which benefit the cement, magnetic separation, especially for steel slag, slag, slurry slag's the continuous automatic iron removal.

Parameter Project Model	Surface magnetic induction strength ≈Gs	Belt spee d ≤m/s	Material thickness ≤mm	Width adaptable (mm)	Overall dimension(mm)

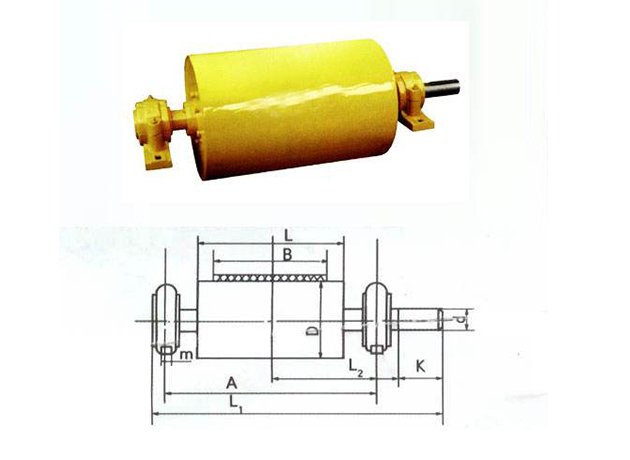

Parameter Project Model	Surface magnetic induction strength ≈Gs	Belt spee d ≤m/s	Material thickness ≤mm	Width adaptable (mm)	A	B	Dφ	L	L1	K	d	h	b
RCT-32/40	1500	2.5	60	400	728	400	320	500	930	100	50	48.5	12
RCT-32/50	1500		60	500	850	500	320	600	1030	100	50	53.5	12
RCT-32/65	1500		60	650	910	650	320	750	1230	115	50	53.5	12
RCT-40/50	1550		80	500	850	500	400	600	1030	100	50	60	14
RCT-40/65	1550		80	650	1000	650	400	750	1230	115	50	60	14
RCT-50/50	1600		100	500	850	500	500	600	1030	115	55	60	14
RCT-50/65	1600		130	650	1000	650	500	750	1230	115	55	60	14
RCT-50/80	1600		130	800	1300	800	500	950	1500	135	55	60	14
RCT-63/65	1650		150	650	1000	650	630	750	1250	135	70	76	16
RCT-63/80	1800		150	800	1300	800	630	950	1600	150	70	76	16
RCT-63/100	1800		150	1000	1500	1000	630	1150	1861	175	70	76	16
RCT-80/100	1800		180	1000	1500	1000	800	1150	1954	215	70	76	20
RCT-100/120	1800		200	1200	1750	1200	1000	1400	2170	235	90	97	20
