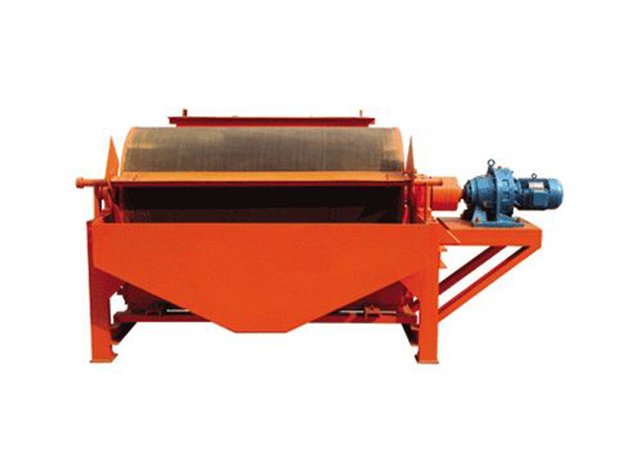

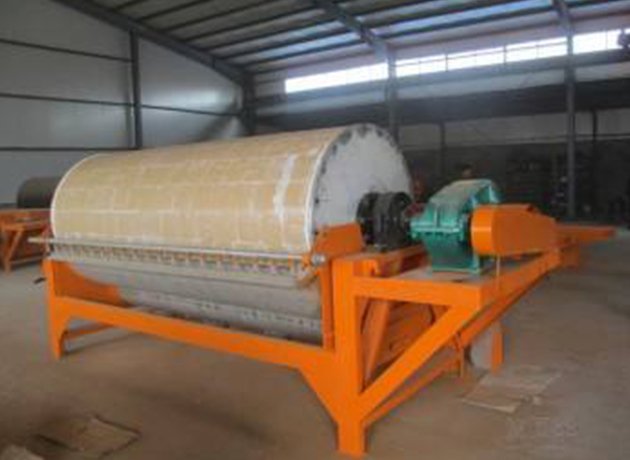

The permanent magnetic drum magnetic separator is suitable for the wet sorting magnetic separation of fine particles such as iron mine or remove the magnetic mineral from nonmagnetic minerals .
◆The magnetic field distribution is reasonable, long-term use without demagnetization;
◆The tank design is the computer simulation of fluid , effectively prevent the slurry precipitation blocking;
◆Magnetic adjustment is convenient and reliable, no magnetic leakage to the spindle, bearing smooth operation, long usage.
Model | Cylinder size | Surface magnetic induction strengthMt | processing capacity | Motor power Kw | Cylinder speed r/min | Total weight of machine kg | ||
diametermm mm | Length mm | t/h | m3/h | |||||
| CTB-618 | 600 | 1800 | 根据矿石品位确定磁感应强度 | 15-30 | 40-80 | 2.2 | 40 | 1340 |
| CTB-718 | 750 | 1800 | 20-45 | 60-100 | 3 | 35 | 2100 | |
| CTB-918 | 900 | 1800 | 25-40 | 70-120 | 4 | 28 | 2900 | |
| CTB-1018 | 1050 | 1800 | 45-60 | 110-160 | 5.5 | 22 | 4000 | |
| CTB-1021 | 1050 | 2100 | 50-70 | 140-200 | 5.5 | 22 | 4500 | |
| CTB-1024 | 1050 | 2400 | 60-80 | 170-260 | 5.5 | 22 | 5000 | |
| CTB-1030 | 1050 | 3000 | 80-120 | 240-380 | 7.5 | 22 | 6300 | |
| CTB-1218 | 1200 | 1800 | 60-75 | 160-260 | 11 | 17 | 5000 | |
| CTB-1224 | 1200 | 2400 | 80-110 | 240-330 | 11 | 17 | 5900 | |
| CTB-1230 | 1200 | 3000 | 100-140 | 260-460 | 11 | 17 | 7200 | |
| CTB-1236 | 1200 | 3600 | 120-160 | 300-550 | 15 | 17 | 8200 | |
| CTB-1240 | 1200 | 4000 | 130-170 | 330-600 | 15 | 17 | 9200 | |
| CTB-1245 | 1200 | 4500 | 150-200 | 380-660 | 15 | 17 | 11000 | |
| CTB-1530 | 1500 | 3000 | 100-180 | 290-480 | 11 | 14 | 9900 | |
| CTB-1540 | 1500 | 4000 | 150-200 | 300-540 | 15 | 14 | 12000 | |
| CTB-1545 | 1500 | 4500 | 180-240 | 400-650 | 18.5 | 14 | 15000 | |
| CTB-1550 | 1500 | 5000 | 210-280 | 500-750 | 18.5 | 14 | 18000 | |
| CTB-1824 | 1800 | 2400 | 100-140 | 260-460 | 15 | 14 | 9100 | |
| CTB-1830 | 1800 | 3000 | 140-190 | 350-560 | 18.5 | 14 | 12300 | |
| CTB-1840 | 1800 | 4000 | 200-260 | 400-650 | 30 | 14 | 18500 | |
| CTB-1850 | 1800 | 5000 | 280-320 | 550-800 | 37 | 14 | 25000 | |
