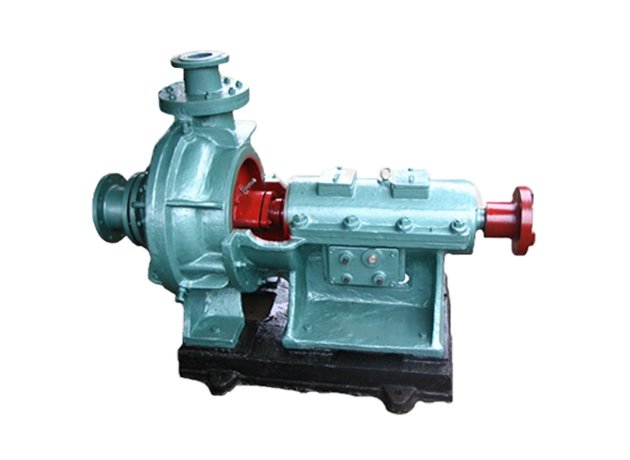

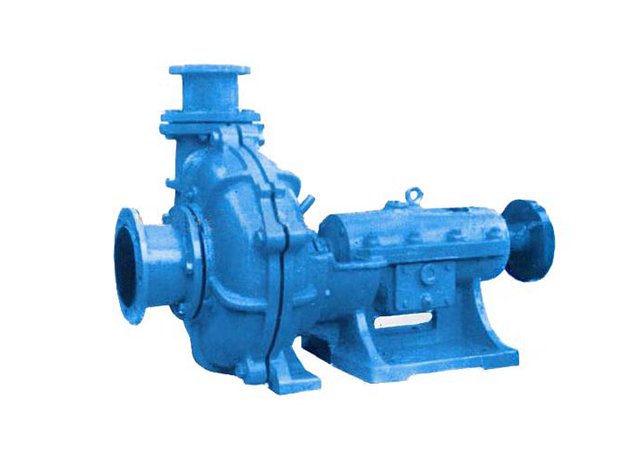

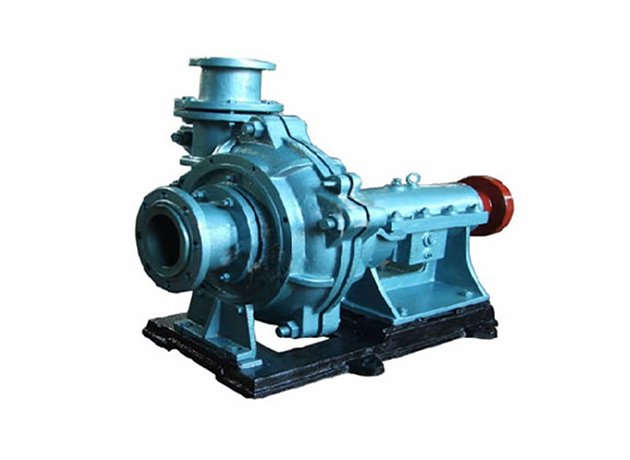

PNJ type pump is a horizontal single stage single suction centrifugal pump. It has anti-corrosion model. It provides two ways of transmission, such as direct and indirect, It is not suitable for conveying liquid with sharp solid particles

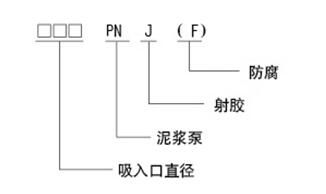

Indication model and quantity, also indicate the way of transmission and the desired Product form
Pump Model | Flow (m3 / h) | Head (m) | Speed (rpm) | Electric motor | Efficiency (%) | Impeller diameter(mm) | weight(kg) | |
Model | Power(kW) | |||||||
| 25PNJ | 12～18 | 14～11.5 | 1420 | Y100L2-4 | 3 | 30.3～38.4 | 195 | 127 |
| 50PNJ | 27～50 | 22～19 | 1460 | Y160M-4 | 11 | 30～40 | 277 | 700 |
| 1470 | Y180M-4 | 18.5 | ||||||
| 100PNJ | 41.5～111 | 51～49 | 1470 | Y200L-4 | 30 | 32～45 | 340 | 1500 |
