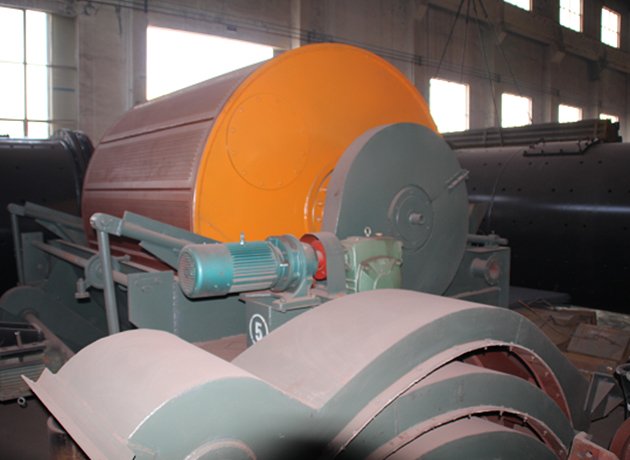

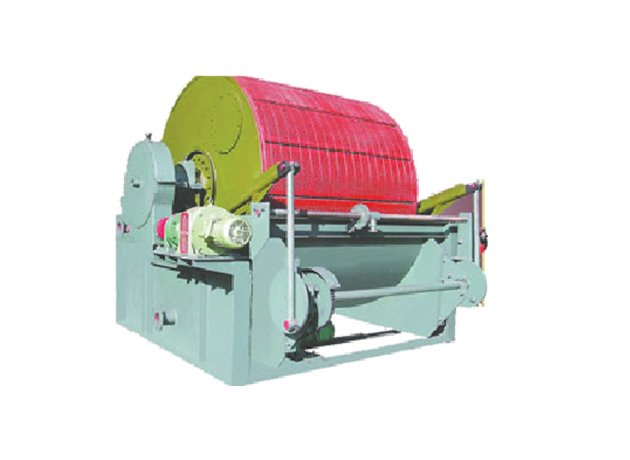

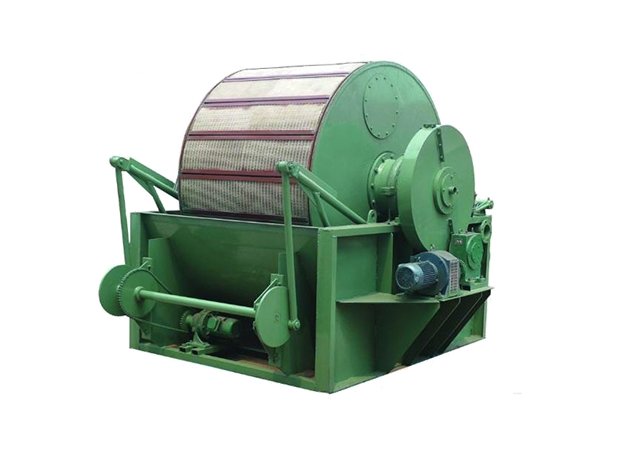

GW filter is a common type of filter, by adjusting the motor speed to achieve stepless speed change. The utility model has the advantages of simple structure, low price, convenient use, small maintenance quantity, less wearing parts, etc..
Need work with the pumping system, gas water separation system (automatic drainage filtrate cylinder) , ancillary products have to be ordered separately (vacuum pumps, pumping pressure tank system)
model | filter area (m2) | speed (r/min) | Stirring time (times/min) | capacity (t/h) | reducer | motor power | Dimension (mm) (L×W×H) | weight (kg) | ||
cylinder | mixer | cylinder | mixer | |||||||
| GW-3 | 3 | 0.066～0.662 | 25 | 0.3～1.2 | YCT132-4A | XWD4-59-0.8 | 1.1 | 0.8 | 2231×2450×1850 | 2500 |
| GW-5 | 5 | 0.066～0.662 | 25 | 0.5～2 | YCT132-4A | XWD4-59-0.8 | 1.1 | 0.75 | 2531×2450×1850 | 2756 |
| GW-8 | 8 | 0.13～0.26 | 23 | 0.7～3.8 | YCT160-4B | XWD4-59-0.8 | 2.2 | 2.2 | 3043×2892×2370 | 5000 |
| GW-10 | 10 | 0.13～0.26 | 23 | 1～4 | YCT160-4B | XWD4-59-0.8 | 2.2 | 2.2 | 3443×2892×2370 | 5200 |
| GW-12 | 12 | 0.3～0.2 | 23 | 1～4.8 | YCT160-4B | XWD4-59-0.8 | 2.2 | 2.2 | 3843×2892×2370 | 5910 |
| GW-20 | 20 | 0.14～0.54 | 23 | 3～8 | YCT200-4A | XWD5-59-1.5 | 5.5 | 1.5 | 4480×4085×2890 | 10600 |
