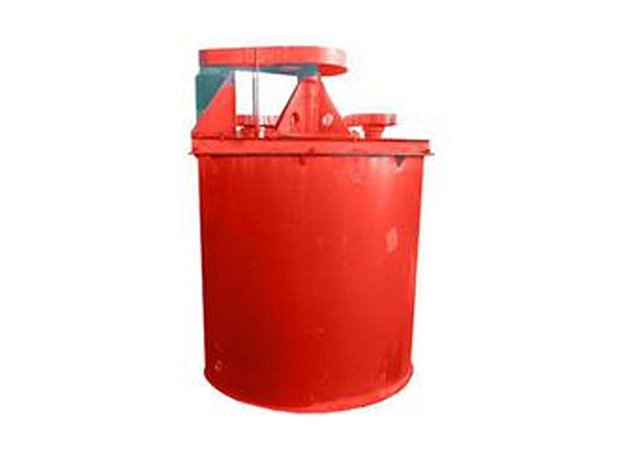

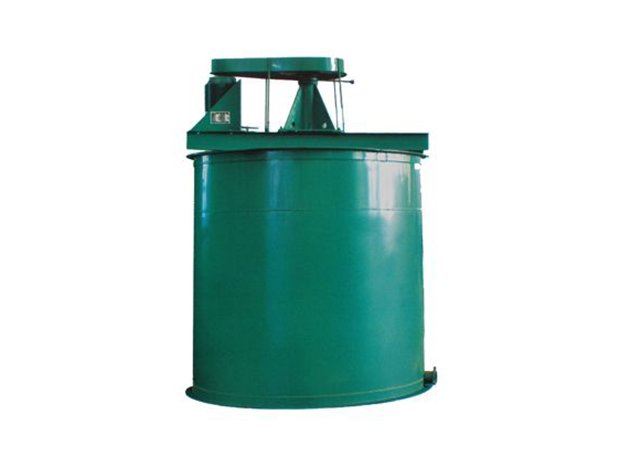

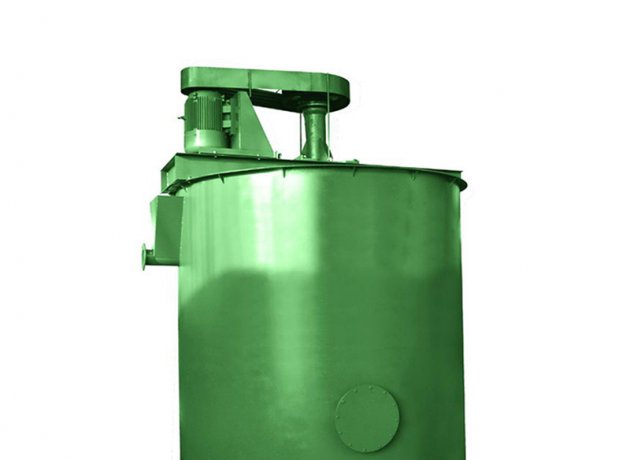

This product is designed for high efficiency thickener which specially set with flocculant adding device.It comes with the unique impeller type, mixing evenly, good mixing effect.
Axis and impeller material has stainless steel and ordinary material to pick.
model | dimension of Tank(mm) | volume(m3) | impeller | motor | lifting height (mm) | Dimension (mm) (L×W×H) | weight (kg) | |||
diameter | height | diameter(mm) | speed(r/min) | model | power(kW） | |||||
| XNJ | 750 | 1000 | 0.42 | 300 | 572 | Y100L2-4 | 3 | 750 | 1250×750×1738 | 681 |
| XNJ | 1500 | 1800 | 2.8 | 450 | 480 | Y160L-6 | 11 | 1500 | 2100×1500×2414 | 1022 |
| XNJ | 2000 | 2500 | 6 | 550 | 362 | Y280S-6 | 15 | 1500 | 2900×2000×3000 | 2400 |
| XNJ | 2500 | 3000 | 12 | 650 | 305 | Y225M-8 | 22 | 2000 | 3500×2500×3600 | 4700 |
